Phantom

Alia Yachts delivers a beautifully sculpted workhorse with PHI Phantom

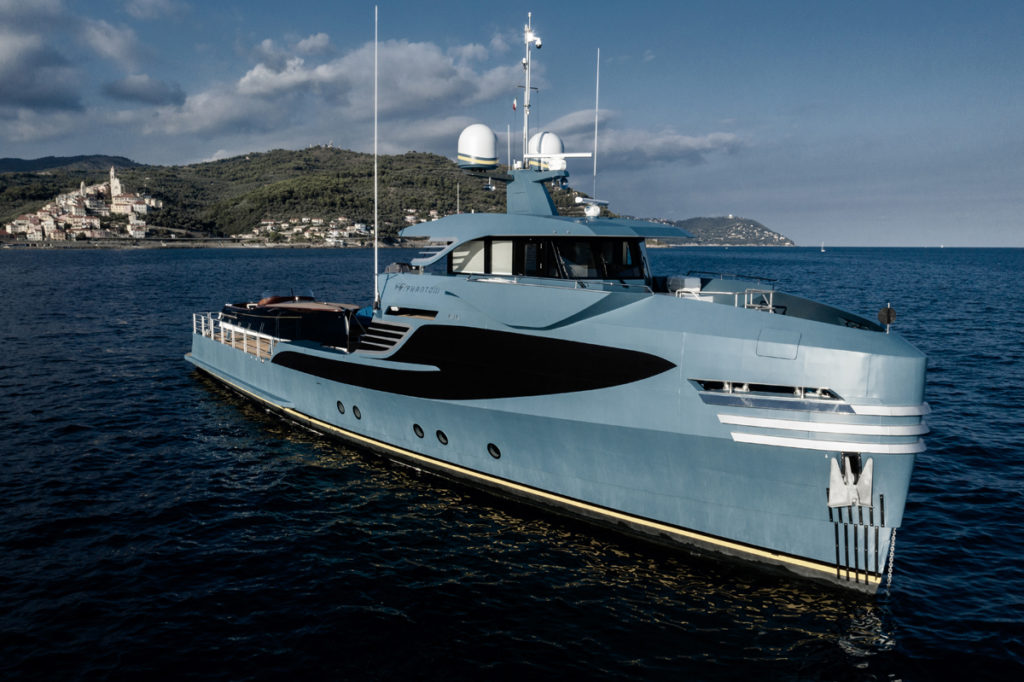

Phantom-Hot off the presses are the first official photographs showing the stunning new 36m chase boat PHI Phantom from Alia Yachts in her element at last. Charl van Rooy (RedCharlie Media) has captured the pared back muscular looks of the vessel, which will follow its 58.5m mothership PHI around the globe carrying an array of toys and tenders.

The images bring out the rugged core of the yacht, which was built by the Turkish yard in aluminium and painted to match the mothership without a lick of filler. Alia’s expert welding has resulted in a startlingly true finish, but it is still just possible to make out the lines where the structural frames of the boat meet the hull panels – as was the intention of the designers. It gives the boat a lean, business-like appearance.

“The exterior styling of PHI Phantom has everything to do with her mothership PHI and at the same time she is really and literally a shadow of the longer beauty queen,” says exterior designer Cor D. Rover. “So, we simply looked at the design DNA that we gave mothership PHI, which consisted of a set of organically curved sheerlines, contrasting black and blue surfaces, and sharp edged and curved wing stations. As much as we were able to, given the constraints, we applied this DNA to PHI Phantom. Alia did a fantastic job in sculpting our ideas in aluminium without the forgiving help of filler material!”

Put the support ship alongside its parent and the resemblance is clear. Not just the same striking Stars & Stripes Blue paint, which is matt on PHI Phantom while high gloss on PHI, and swooping sheer, but similar stainless-steel grilles at the bow and on the superstructure, and the same dark glass panels. But the family likeness is more than skin deep.

With a patented Fast Displacement XL^® hull from Van Oossanen and twin Cat C-32 engines, PHI Phantom also boasts an impressive performance. At her economical 11 knots cruising speed, she can manage an impressive range of over 6,000 nautical miles, but at full revs, she can reach 21 knots to match the slim, easily-driven hull of the mothership.

•

•

•

•

•

“It was clear from the start that the long and slender Fast Displacement XL^® would be highly beneficial for application to a chase yacht,” said Perry van Oossanen of Van Oossanen Naval Architects. “The extra length directly translates to extra deck space, which is the main purpose of a chase yacht and will add versatility, high fuel-efficiency and comfort. Because of this, PHI Phantom can easily be considered equal to chase yachts of much higher length and tonnage.”

Engineered to the nth degree to offer redundancy for every system, this is a boat that is designed to venture far off the beaten track and rely on its own resources. Key in its armoury of equipment is a very capable 9m HS Marine crane for launching and retrieving the tenders and toys stored on the 150 square metre open aft deck.

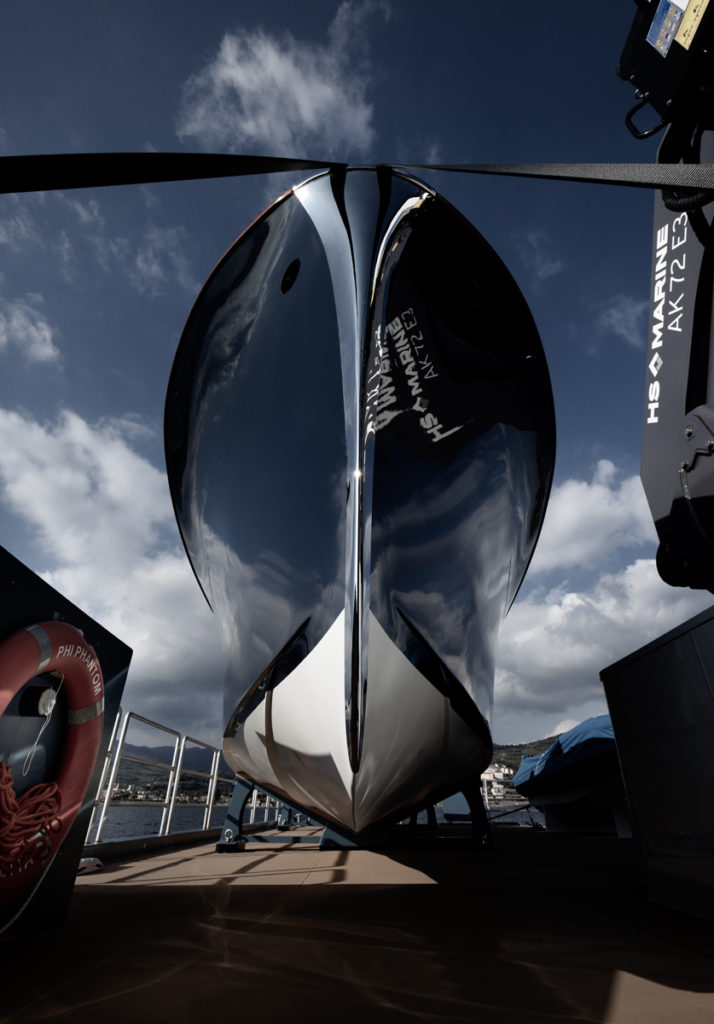

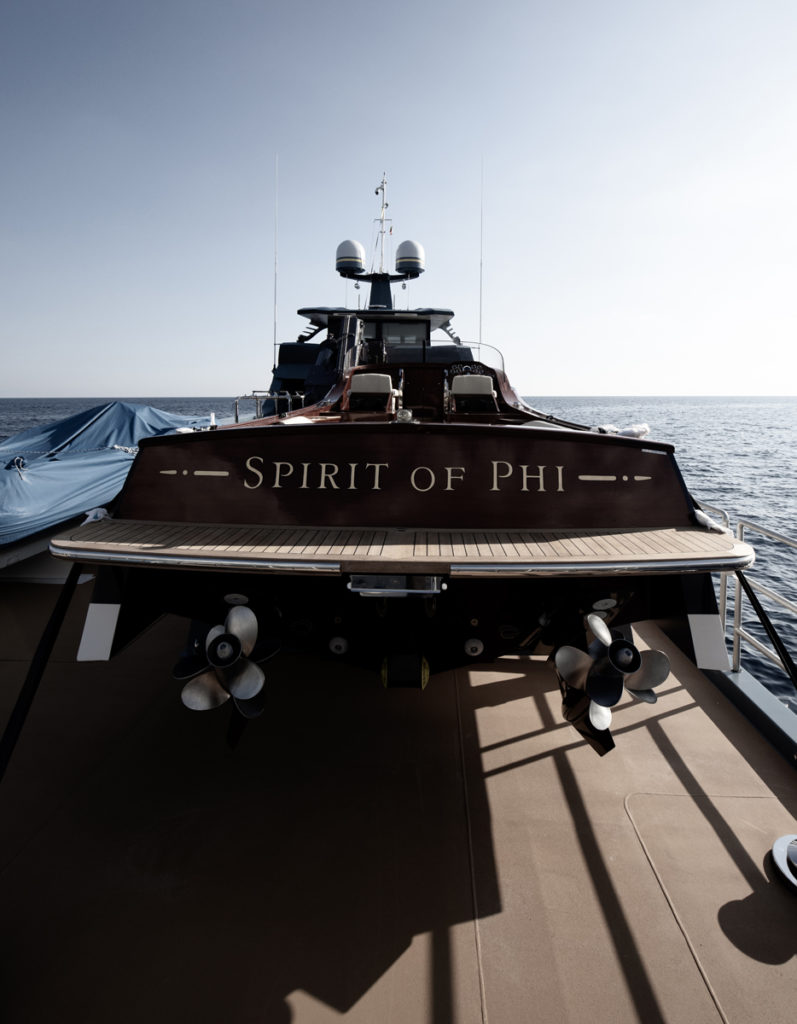

Pride of place among these floating playthings is taken by an achingly beautiful 12.3m motor launch built specially for PHI by Spirit Yachts. Known as Spirit of PHI, this boat is a heavily customised version of the Ipswich yard’s P40 built in wood. Weighing in at some 4.5t, the tender is well within the 5.5t capabilities of PHI Phantom’s crane. As are the small sailboat, electric car and jet skis that will also be stored aboard, alongside road, trail and electric bikes, all manner of boards and even an inflatable slide.

•

PHI Phantom will also be capable of bunkering fuel to extend the mothership’s range, and houses extra laundry facilities to boost capacity when there are lots of guests aboard. Meanwhile, there are three cabins on board, enough to accommodate the three permanent crew and offer a slightly larger cabin with a desk to a guest or visitor, such as a guide. The interior is rounded off by a fine galley and a big crew mess.

“We are so proud to see PHI Phantom floating.” said Gökhan Çelik, President of Alia Yachts. “The very engaged owner has worked with us every step of the way, giving us the support we needed to complete some very specific requests, including that requirement to use no filler on the hull.

“All our skills as a yard have been brought to bear in the creation of a yacht whose capabilities will make her a joy to use in the many adventures that lie ahead of her. We wish PHI Phantom, her mothership and those who sail in them all the joys of the high seas.”

Specifications PHI Phantom

Length Overall:                                  36m / 118’10”

Length Waterline:                              34.44m / 113’’

Beam Overall:                                     8.4m / 37’6”

Draft:                                                  1.90m / 6’23’’

Displacement:                         200t

Gross Tonnage:                                   199 GT
Material of Hull:                                 Aluminium Alloy 5083 H111
Material of Superstructure:                 Aluminium Alloy 5083 H111
Cargo Deck:                                       157 m2
Lazarette:                                            45 m2 with h:2.05m
Workshop on Main Deck:                  33 m2 ( + 8 m2 provision store ) with h:2.05m
Main Engines:                                    2 x CAT C-32 E-rating Epo Tier3 IMO Tier2

(2 x 1900 bhp @2300 rpm)

Top Speed:                                          21 knots
Fuel Capacity:                                     57.400 litres / 15,163 gallons
Range at Cruising Speed (12kn):       4,200 nm
